Dimmer LED Bakelite

SKU: 3041-46-92

Dimmer LED Bakelite

EUR108.41

Available in central stock
Fast facts

Additional information

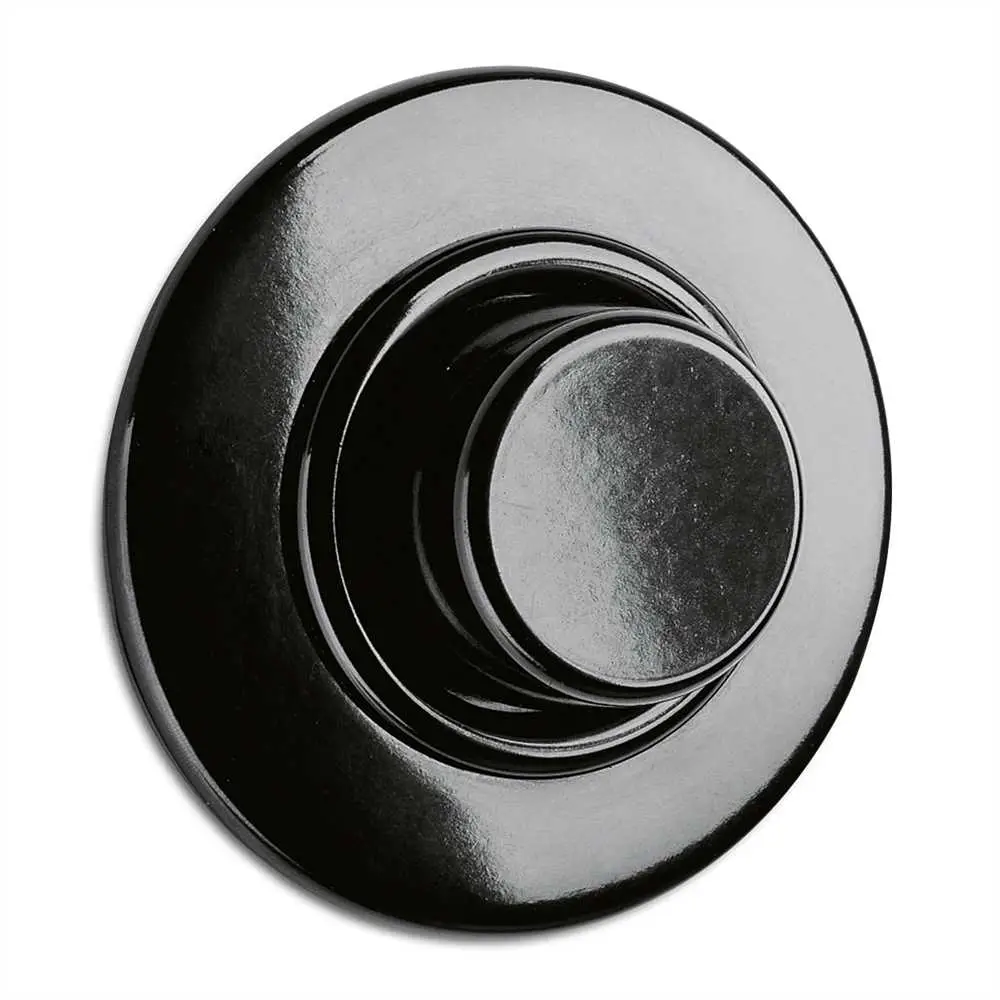

Dimmer switch with step switch function made of black bakelite for wall mounting. Press for on/off and turn to adjust brightness. This dimmer works with dimmable LED lamps and regular incandescent and low energy lamps. Also works with HV-Halogen and NV-Halogen with magnetic transformer. It does not work for NV-Halogen with electronic transformer.

Material: Insert, dimmer switch and scope are made of black bakelite

Size: Diameter 82 mm

Connection power: 7-110 W/VA and 3-35 W LED

Operating voltage: 230 V/50 Hz

Short circuit/overload protection: Yes, with fuse

Dimmer for dimmable LED lamps (3-35 W) and ordinary incandescent lamps (7-110 W/VA).

Description

Dimmer switch with step switch function made of black bakelite for wall mounting. Press for on/off and turn to adjust brightness. This dimmer works with dimmable LED lamps and regular incandescent and low energy lamps. Also works with HV-Halogen and NV-Halogen with magnetic transformer. It does not work for NV-Halogen with electronic transformer.

Material: Insert, dimmer switch and scope are made of black bakelite

Size: Diameter 82 mm

Connection power: 7-110 W/VA and 3-35 W LED

Operating voltage: 230 V/50 Hz

Short circuit/overload protection: Yes, with fuse
