Hinges and fittings

Window lock with hook for outward opening windows. Untreated brass. Screw included.

The eyelet hook is the intelligent window fitting from around 1920 onwards. The eyelet hook is mounted on the sash of a single or coupled window, and has an adjustable screw that allows you to always get the window tight, even if the sash is slightly skewed or the seal uneven. Very suitable for use in combination with Gysinge’s wool sealing strips.

Hand-forged window fittings after a common model from 1800 to 1850. Well made hand forging from Gysinge. Untreated iron.

Height 11.5cm, length 10.5cm, width 2.8cm. Nailed with hand-forged nail 1-1.5 inches.

Hand-forged window fittings of models that were common throughout the country in the 18th century.

Well made hand forged window corner iron from Gysinge. Untreated. Nailed with hand-forged nails 1-1.5 inches. Width 26 mm, height 105 mm, length 105 mm, thickness about 2 mm.

Corner iron 1850 – 1900.

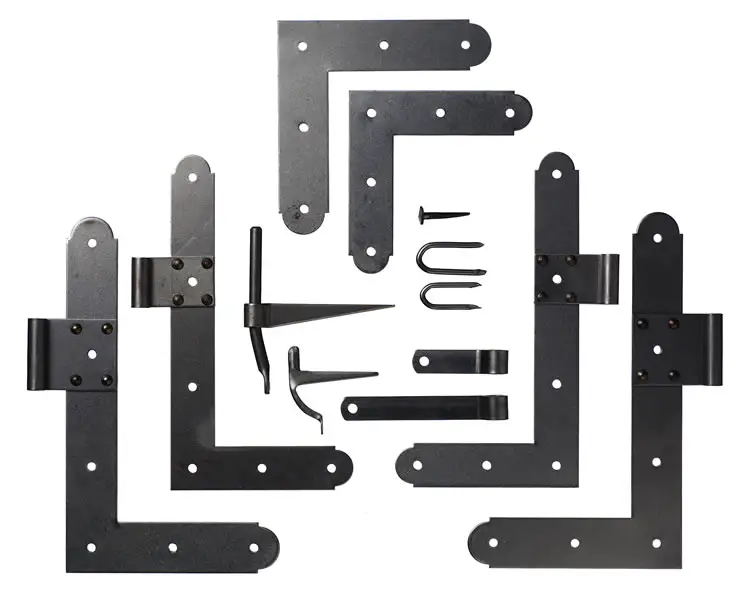

Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

The eye bolt is the intelligent window fitting from around 1920 onwards. The eyelet hook is mounted on the sash of a single or coupled window, and has an adjustable screw in a plate that allows you to always get the window tight, even if the sash is slightly skewed or the seal uneven. Very suitable for use in combination with Gysinge’s wool sealing strips.

The eye bolt is the intelligent window fitting from around 1920 onwards. The eyelet hook is mounted on the sash of a single or coupled window, and has an adjustable screw in a plate that allows you to always get the window tight, even if the sash is slightly skewed or the seal uneven. Very suitable for use in combination with Gysinge’s wool sealing strips.

An interior window fitting of the trapdoor type, made of hand-polished brass. A common design throughout the first half of the 20th century. Very high quality. Also called window latch.

The fitting is polished, not lacquered, which means that the brass surface darkens naturally if it is not polished.

Untreated brass. Length 52mm, height 38mm. Suitable screw no 7. (Screw not included.)

Interior window fittings of the trapdoor type in hand-polished brass. The model, also known as window latch, is common from the mid-19th century to a few decades into the 20th century.

The unusual feature of our fitting is a completely smooth back, which means that installing the fitting does not require drilling and making holes in the sash. Therefore, the fitting is very easy to install. At the same time, the sash is horizontal in the closed position. On many of the old models, the boom is usually only almost horizontal.

Note also that the edges are beveled, as on the original fittings (there are other simpler “copies” on the market). The fitting is polished, but not lacquered, which means that the brass surface darkens naturally if you do not polish it.

Polished brass. Height 37 mm, length assembled 60 mm.

Suitable screw no. 6. (Not included)

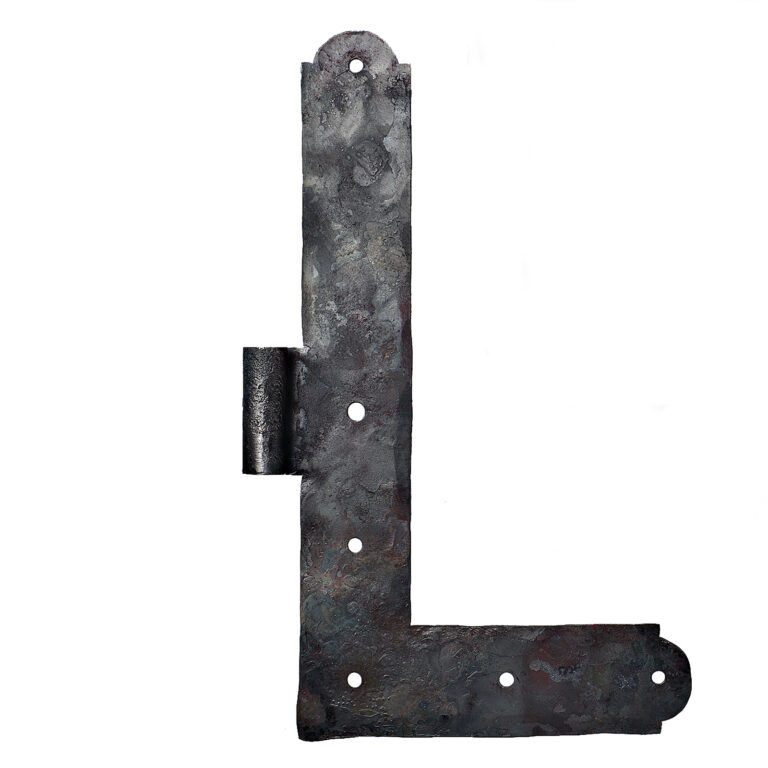

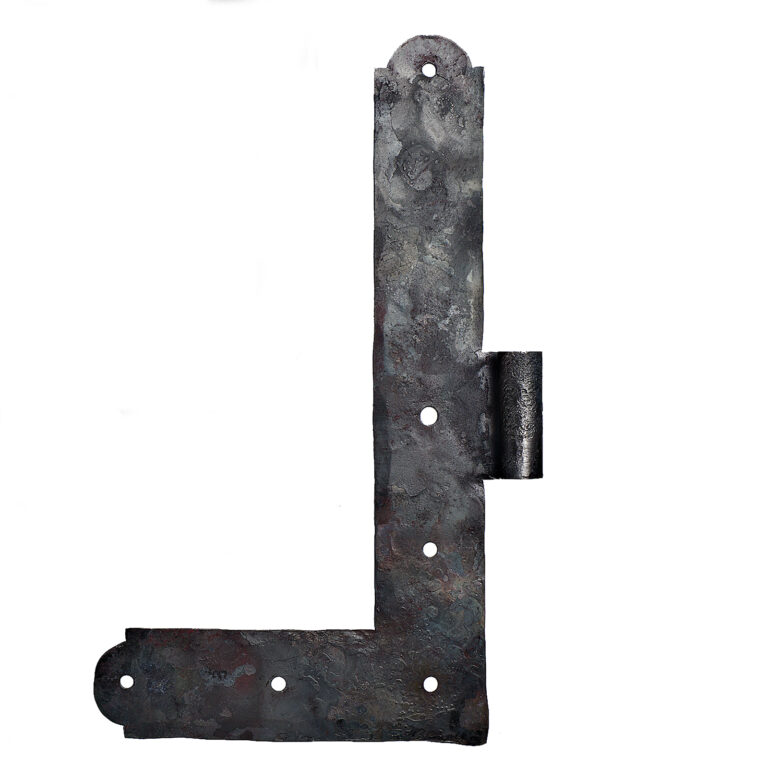

Hinges right. Hand forged window fittings after a common model from 1800 to 1850. Well made hand forging.

Untreated iron. Nailed with hand-forged nails 1-1.5 inches. Height 20 cm. Length 11,5 cm. Width 3 cm. Knurled height 3,6 cm. Thickness 3 mm.

To hang a sash that is on the right side of a window, you need a right-hand hinge and a left-hand hinge that you turn and 2 hinge pins.

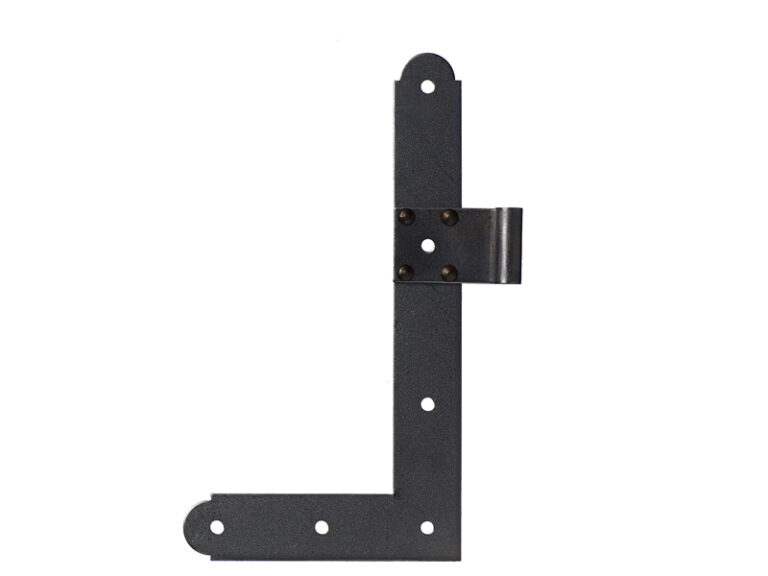

Hinge, right. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

To hang a sash that is on the right side of a window, you need a right-hand hinge and a left-hand hinge that you turn and 2 hinge pins.

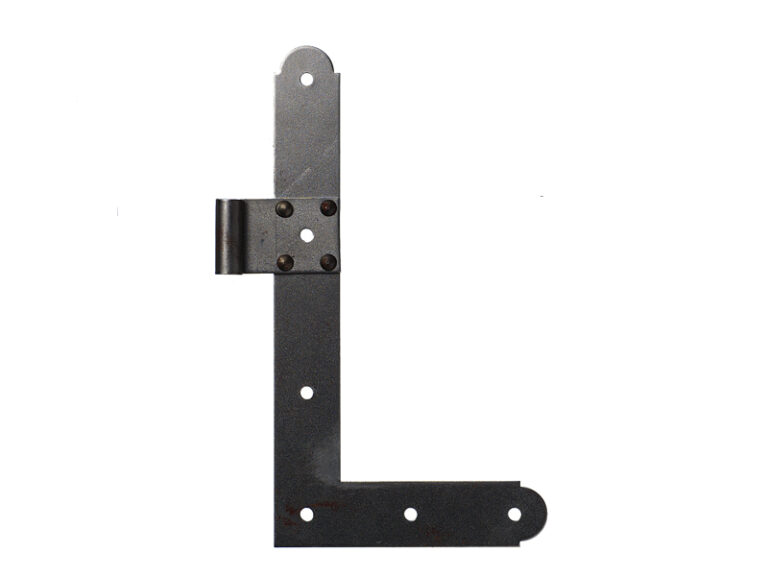

Hinge, left. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

To hang a sash that is on the left of a window, you need a left hinge and a right hinge that you turn around and 2 hinge pins.

Hinge, right. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

To hang a sash that is on the right of a window, you need a right-hand hinge and a left-hand hinge that you turn and 2 hinge pins.

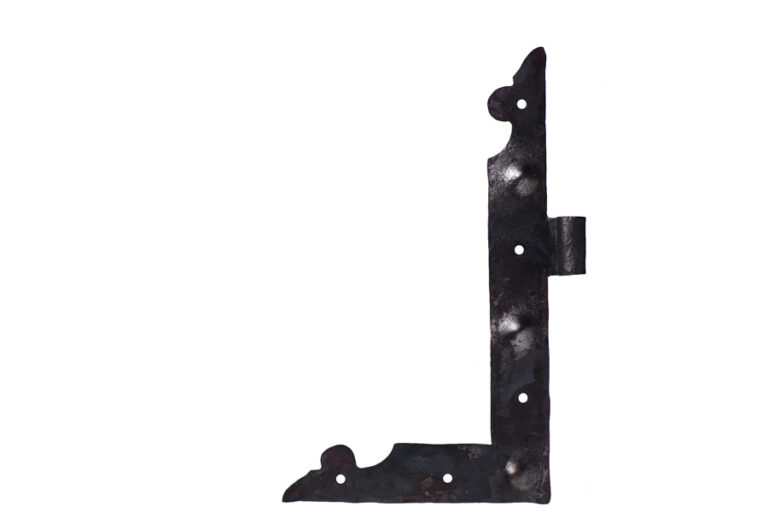

Hinges with punched bumps, right. Hand-forged window fittings of models that were common throughout the country in the 18th century. Well made hand forging.

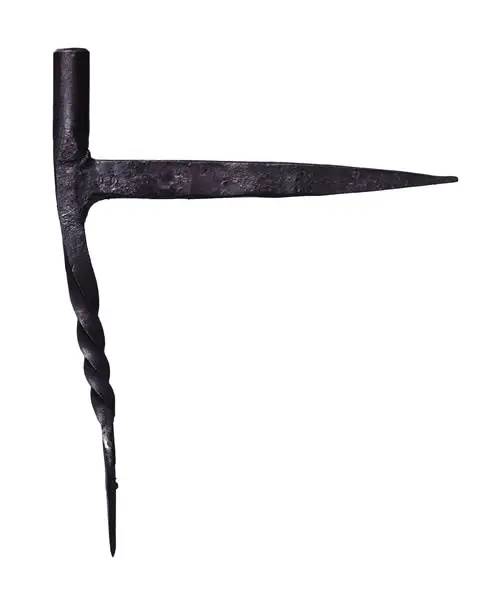

Spiral-twisted hinge stack. Hand-forged window fittings of models that were common throughout the country in the 18th century. Well made hand forging. Untreated iron.

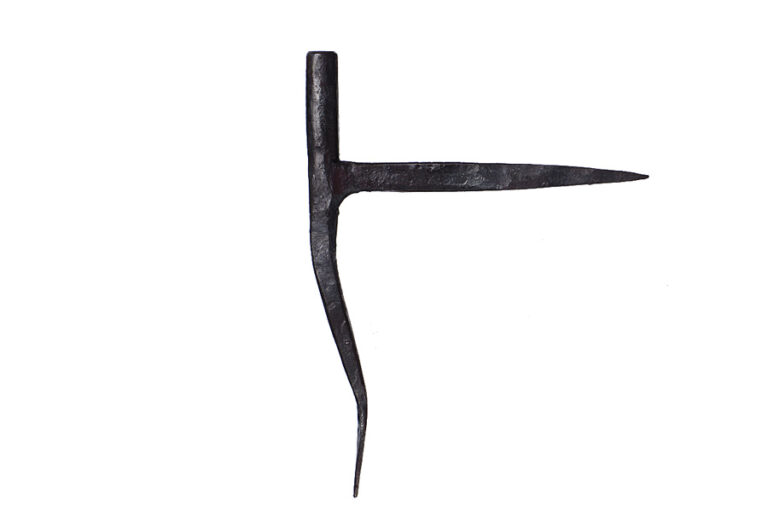

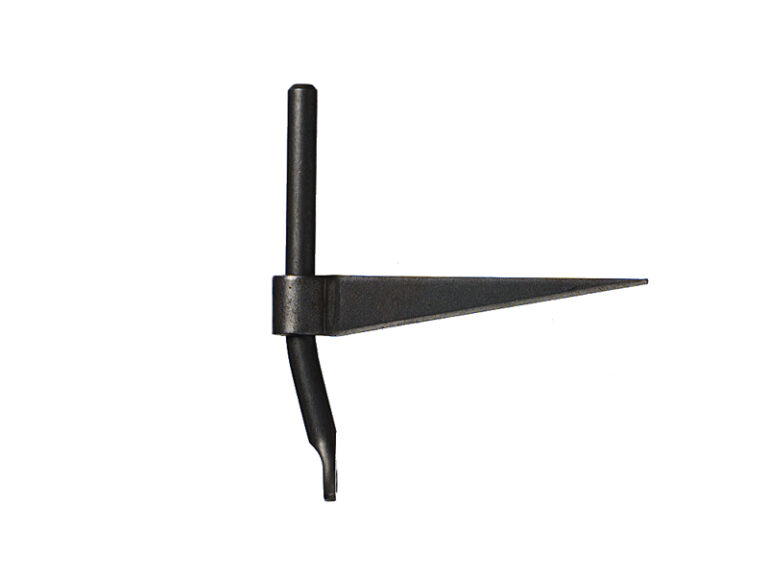

Hinged bar. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

Hinged bar. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.
