Switch

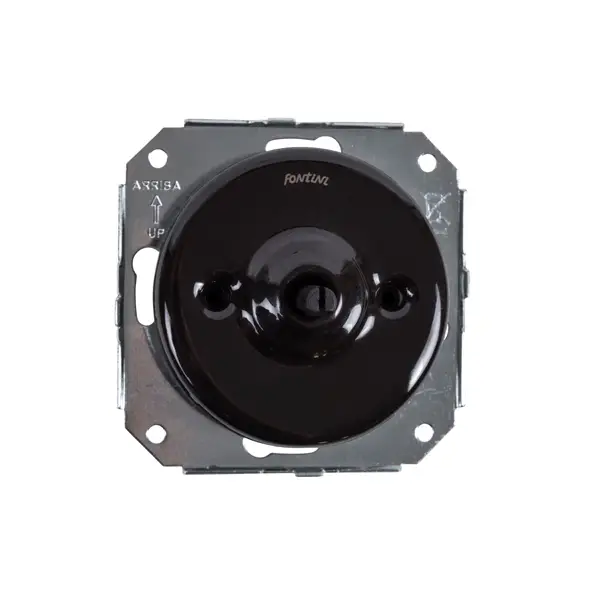

Classic recessed switch in black porcelain without knob and frame in a design that was common in Europe in the first half of the 20th century.

This switch has a so-called cross function, which means that it should only be used if more than two switches are to control the same light source from different locations in a room, staircase or corridor. The cross-function switch is then mounted between two staircase switches.

If an ordinary switch is required to turn a light source on and off, or if two switches are connected to the same light source, a step switch should be selected instead.

Combine the switch with the optional knob and frame sold separately. See related products below.

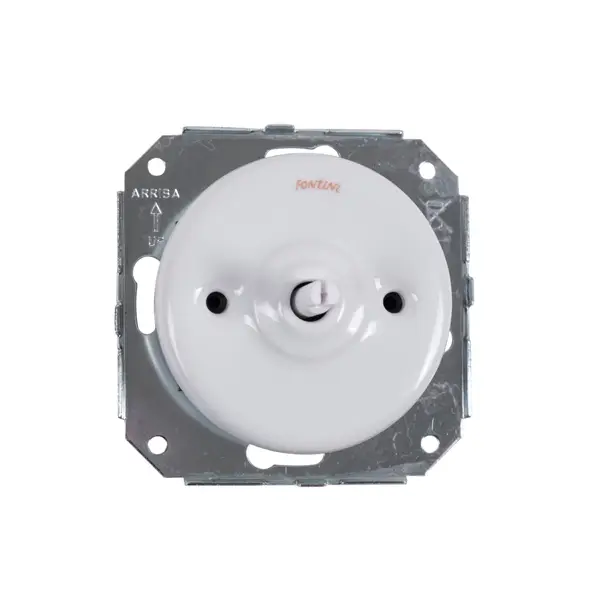

Classic recessed switch in white porcelain without knob and frame in a design that was common in Europe in the first half of the 20th century.

This switch has a so-called cross function, which means that it should only be used if more than two switches are to control the same light source from different locations in a room, staircase or corridor. The cross-function switch is then mounted between two staircase switches.

If an ordinary switch is required to turn a light source on and off, or if two switches are connected to the same light source, a step switch should be selected instead.

Combine the switch with optional knob and frame sold separately. See related products below.

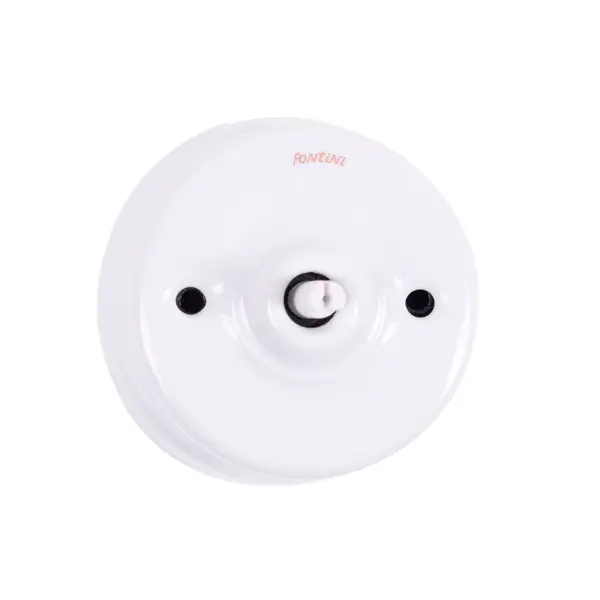

Classic surface-mounted switch in white porcelain without a knob in a design that was common in Europe during the first half of the 20th century.

This switch has a so-called cross function, which means that it should only be used if more than two switches are to control the same light source from different locations in a room, staircase or corridor. The cross-function switch is then mounted between two staircase switches.

If an ordinary switch is required to turn a light source on and off, or if two switches are connected to the same light source, a step switch should be selected instead.

In the side of the base there is an opening for cable exit for surface-mounted electrical wiring, but it can also be mounted for recessed wall outlet in combination with one of Fontini’s base plates.

For surface mounting on wooden panels or other flammable material, an insulating plastic base plate can be used as additional fire protection.

Combine the switch with the optional knob sold separately. See related products below.

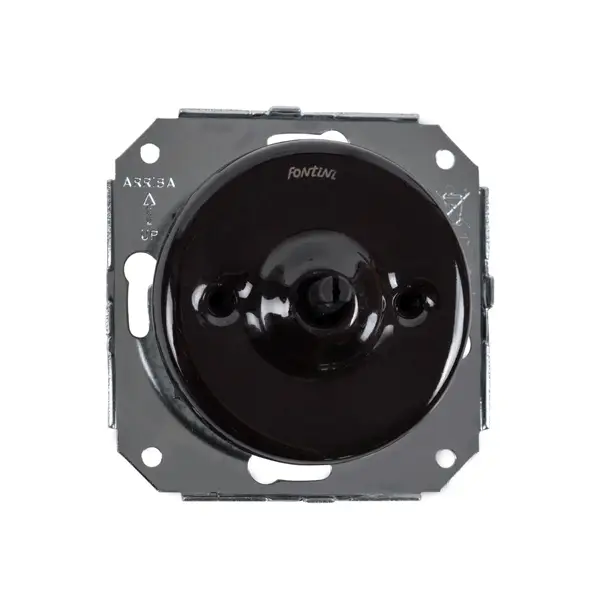

Classic recessed switch in black porcelain without knob and frame in a design that was common in Europe in the first half of the 20th century.

This switch has a so-called crown function, which means that it is used to control two separate light sources. The different positions of the knob make it possible to choose whether both light sources should be lit at the same time or only one.

Four positions of the knob:
1. Both light sources off
2. Light source A on
3. Both light sources on
4. Light source B on

Combine with optional knob and frame sold separately. See related products.

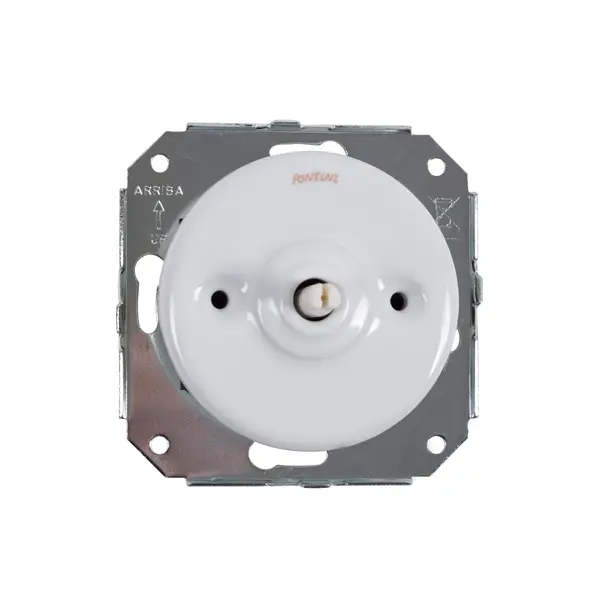

Recessed recessed double dimmer in white porcelain without frame and knob in a design that was common in Europe in the first half of the 20th century.

The double dimmer is bi-directional and has a so-called crown function, which means that it is used to dim two separate light sources.

The can dimmer, sold separately, is placed in appliance boxes in the wall. Combine the switch with optional frame and knob sold separately. See related products.

Dimmer with step function in black porcelain intended for wall mounting. The button is pressed to turn on/off a light source and turned to regulate the brightness.

Works with dimmable LED lamps, ordinary incandescent lamps and low-energy lamps. Together with an electronic transformer, it also works with NV halogen.

Insert only. Combine with optional frame for recessed inserts sold separately.

Dimmer with step function in white porcelain intended for wall mounting. The button is pressed to turn on/off a light source and turned to regulate the brightness.

Works with dimmable LED lamps, ordinary incandescent lamps and low-energy lamps. Together with an electronic transformer, it also works with NV halogen.

Insert only. Combine with optional frame sold separately.

Dimmer switch with step switch function made of black bakelite for wall mounting. Press for on/off and turn to adjust brightness. This dimmer works with dimmable LED lamps and regular incandescent and low energy lamps. Also works with HV-Halogen and NV-Halogen with magnetic transformer. It does not work for NV-Halogen with electronic transformer.

Material: Insert, dimmer switch and scope are made of black bakelite

Size: Diameter 82 mm

Connection power: 7-110 W/VA and 3-35 W LED

Operating voltage: 230 V/50 Hz

Short circuit/overload protection: Yes, with fuse
